Agent level Webhooks

Webhooks in SigmaMind let you receive real-time notifications about events happening in your AI agents.
Whenever an event is triggered (e.g., a conversation starts or ends), SigmaMind will send an HTTP POSTrequest with a JSON payload to your configured webhook URL. This allows you to fetch conversation info from your agents in your own applications, CRMs, or monitoring systems.

How Webhooks Work

Each AI Agent can have its own webhook.
A single webhook URL can be reused across multiple agents.
When the selected event occurs, SigmaMind sends a signed JSON payload to your webhook endpoint.
Your system can then process this payload to perform actions like updating CRM records, triggering workflows, or logging analytics.

Think of webhooks as push notifications for your backend — you get updates instantly when something important happens in SigmaMind.

Supported Webhook Events

The following events are currently supported:

conversation_started – Triggered when a new customer conversation begins.
conversation_ended – Triggered when a conversation is closed or completed.
conversation_analysed – Triggered when call analysis is completed.

Creating Webhooks

You can create webhooks in two ways:

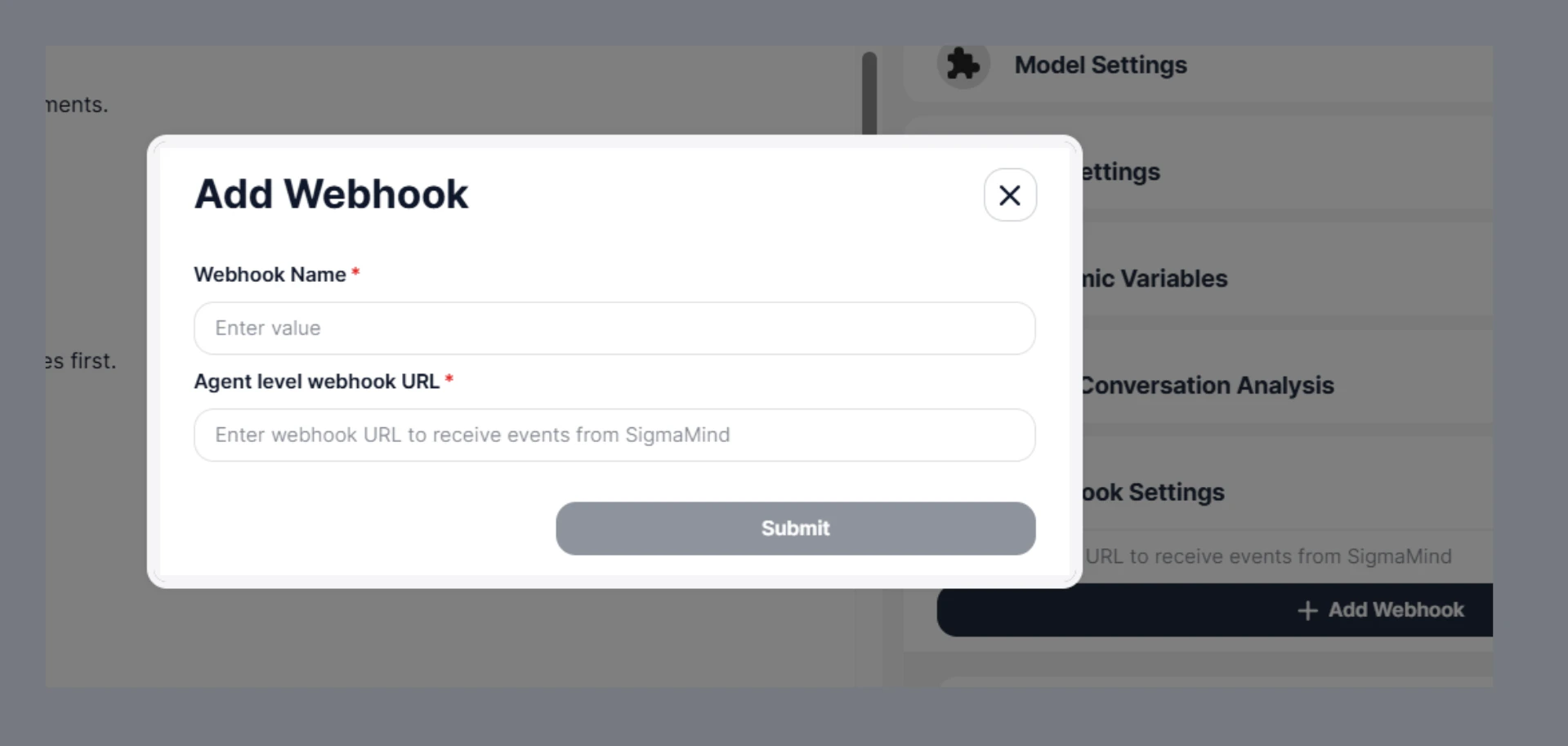

1. Using the Dashboard

You can configure webhooks from Agent Settings:

Open the AI Agent you want to connect.
Go to Agent Settings → Webhooks.
Click on Add Webhook
Provide the following details -
- Webhook Name - Set the name you want to give this webhook.
- URL - Enter a webhook URL. You’ll find this from your system where you want to receive the events from SigmaMind.
- Hit Submit to add the Webhook.

2. Using the API

If you prefer programmatic control, you can use the Webhook API to register webhooks.

The name field is a human-readable identifier for your webhook.
The url is the endpoint in your system that will receive webhook events.
The agentId must correspond to an existing Agent in your SigmaMind account.
The events parameter lists which Agent events will trigger the webhook.

curl --location 'https://api.sigmamind.ai/v1/webhooks' \
--header 'Content-Type: application/json' \
--header 'X-API-KEY: key_C6HL3Goru7Q.TlI5kZOKPmDM03Gt39nRBEnxrL*******************' \
--data '{
    "name": "Test Webhook 1",
    "url": "https://your-server.com/webhooks/ai-agent",
    "agentId": "D5D0p7TUs66TTAEAx",
    "events": [
        "conversation_started",
        "conversation_ended"
    ]
}'

Security and Verification

🔑 Secret Generation

Each webhook is associated with a unique secret.
This secret is generated securely using a cryptographically strong random generator.
We store this secret encrypted at rest.
You should securely store this secret on your side — it is required to verify incoming webhooks.

📦 What We Send

Every webhook request includes:

Headers

Headers	Description
`x-webhook-signature`	HMAC SHA256 signature of the request
`x-webhook-timestamp`	Unix timestamp (in seconds)
`x-webhook-delivery-Id`	Unique delivery ID (for idempotency)
`x-webhook-id`	Webhook identifier

Body

JSON payload (exact content used for signature generation)

📄 Example Payload

Here’s an example of the webhook payload your endpoint will receive:

{
  "id": "wh_BUbkx3PsbzQm5V10",
  "event": "conversation_started",
  "createdAt": "2026-05-04T10:05:37.800",
  "data": {
    "workspace": {
      "workspace_id": "org_9y41TftLgBOuLi7e"
    },
    "agent": {
      "name": "Test Agent",
      "agent_id": "CYu0gJcTPZdy36T1",
      "status": "Testing"
    },
    "phone_number": {},
    "call": {
      "call_id": "call_X8T94GBhe4mhFwct",
      "call_type": "web",
      "phone_number": null,
      "status": "in_progress",
      "start_time": "2026-05-04T08:05:37.845386Z",
      "end_time": null,
      "duration": 0,
      "termination_reason": null,
      "created_at": "2026-05-04T08:05:37.841",
      "updated_at": "2026-05-04T08:05:37.968",
      "recording_url": null,
      "agent": {
        "name": "Test Agent",
        "agent_id": "CYu0gJcTPZdy36T1",
        "status": "Testing"
      }
    },
    "customer": {
      "id": 17183296,
      "name": "#Customer17183296_1777881938",
      "email": null,
      "phone": null,
      "first_name": "#Customer17183296",
      "last_name": "_1777881938"
    },
    "conversation": {
      "id": 1810156,
      "channel": "phone",
      "status": "open",
      "subject": "New conversation",
      "via": "playground",
      "email": null,
      "phone": null,
      "usage": null,
      "helpdesk_source": "playground",
      "store_name": null,
      "voice_call_id": "room-playground-7VDMBztOdeHjEQQz",
      "call_id": "call_X8T94GBhe4mhFwct",
      "messages": [
        {
          "id": "5977628",
          "role": "user",
          "content": "New Call Started",
          "channel": "phone",
          "via": "playground",
          "conversation_id": 1810156,
          "helpdesk_source": "playground",
          "intent": null,
          "created_at": 1777881937,
          "updated_at": null
        }
      ],
      "latest_message": {
        "id": "5977628",
        "role": "user",
        "content": "New Call Started",
        "channel": "phone",
        "via": "playground",
        "conversation_id": 1810156,
        "helpdesk_source": "playground",
        "intent": null,
        "created_at": 1777881937,
        "updated_at": null
      },
      "created_at": 1777881937,
      "updated_at": 1777881937,
      "closed_at": null,
      "has_agent_response": false
    },
    "metadata": null,
    "actions": {},
    "dynamic_variables": {
      "customer_phone_number": "",
      "summary": null,
      "fcustomer-name": null,
      "calltransferredtolabtechnician": null,
      "address": null,
      "phone_number": "{{customer.phone}}",
      "customer_name": "Aditya"
    },
    "usage": {},
    "post_call_analysis": null
  }
}

🔏 How Signature is Generated

We compute the signature using:

signature = HMAC_SHA256(secret, timestamp + "." + payload)

and send it as:

x-webhook-signature: sha256=<hex_encoded_signature>

✅ How to Verify Webhook (Client Side)

To validate that the webhook is genuine:

Step 1: Extract values

signature from header
timestamp from header
payload (raw request body)

Step 2: Recompute signature

expectedSignature = HMAC_SHA256(secret, timestamp + "." + payload)

Step 3: Compare signatures

Remove prefix sha256= from header signature
Compare with your computed signature
Use constant-time comparison to avoid timing attacks

Step 4: Validate timestamp (Replay Protection)

Convert timestamp to current time
Reject if difference > 5 minutes

Example:

if (abs(current_time - timestamp) > 300 seconds) → reject

Step 5: Handle idempotency

Use x-webhook-delivery-id to ensure the same event is not processed multiple times

Always use the raw request body (do not reformat JSON before verifying).
Do not trust the request if signature validation fails.
Keep your webhook secret secure (never expose in frontend code).

💡 Examples

payload = timestamp + "." + rawBody
computed = HMAC_SHA256(secret, payload)

if (!constantTimeEquals(computed, receivedSignature)) {
    reject request
}

Always verify signatures before processing webhook data to prevent spoofing attacks.

Summary

Webhooks notify your system in real time about Agent events.
You can create webhooks from the Dashboard or via the API.
A single webhook URL can be used across multiple AI Agents.
Supported events include conversation_started, conversation_analysed and conversation_ended.
Payloads are signed with a secret key for secure delivery.

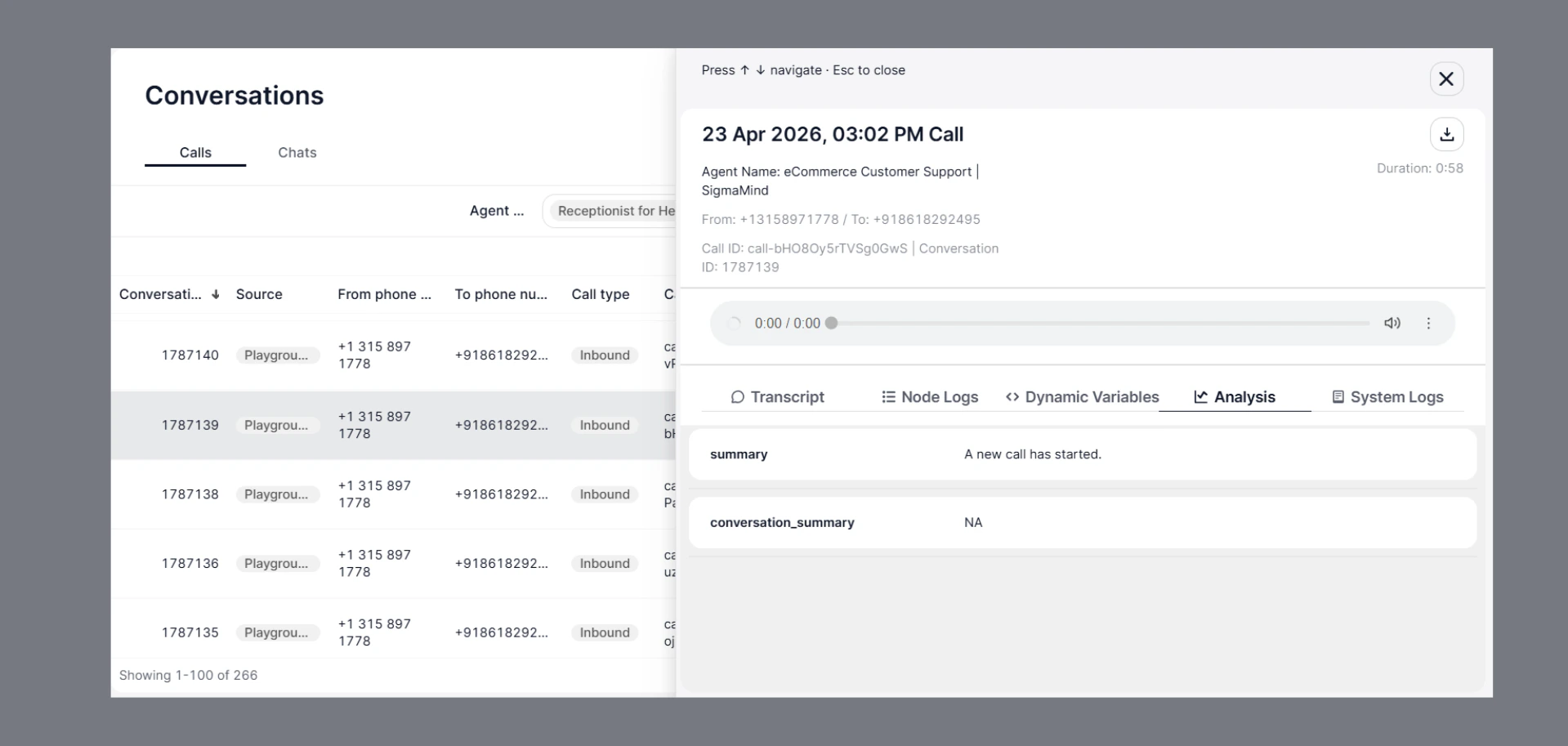

Where to View Analysis in Dashboard

After a conversation is completed and analysis is triggered (conversation_analysed event), you can also view the same data directly in the SigmaMind dashboard.

Steps

Go to Conversations
Open any Call or Chat
Navigate to the Analysis tab

What You’ll See

All Post-Conversation Analysis fields
Extracted insights (summary, outcome, scores, etc.)
Structured data generated by the AI

Why This Matters

Helps you verify webhook data
Useful for debugging and testing
Ensures your analysis instructions are working correctly

Webhooks are the easiest way to integrate SigmaMind into your existing systems and automate workflows.
